RFQ Preparation Checklist
- Assembly drawing and exploded stack if available
- Marker/tip/reinforcement placement requirements
- Bonding or thermal processing constraints
- Packaging and traceability needs
← Back to OEM Capabilities
Catheter Shaft Assembly Support

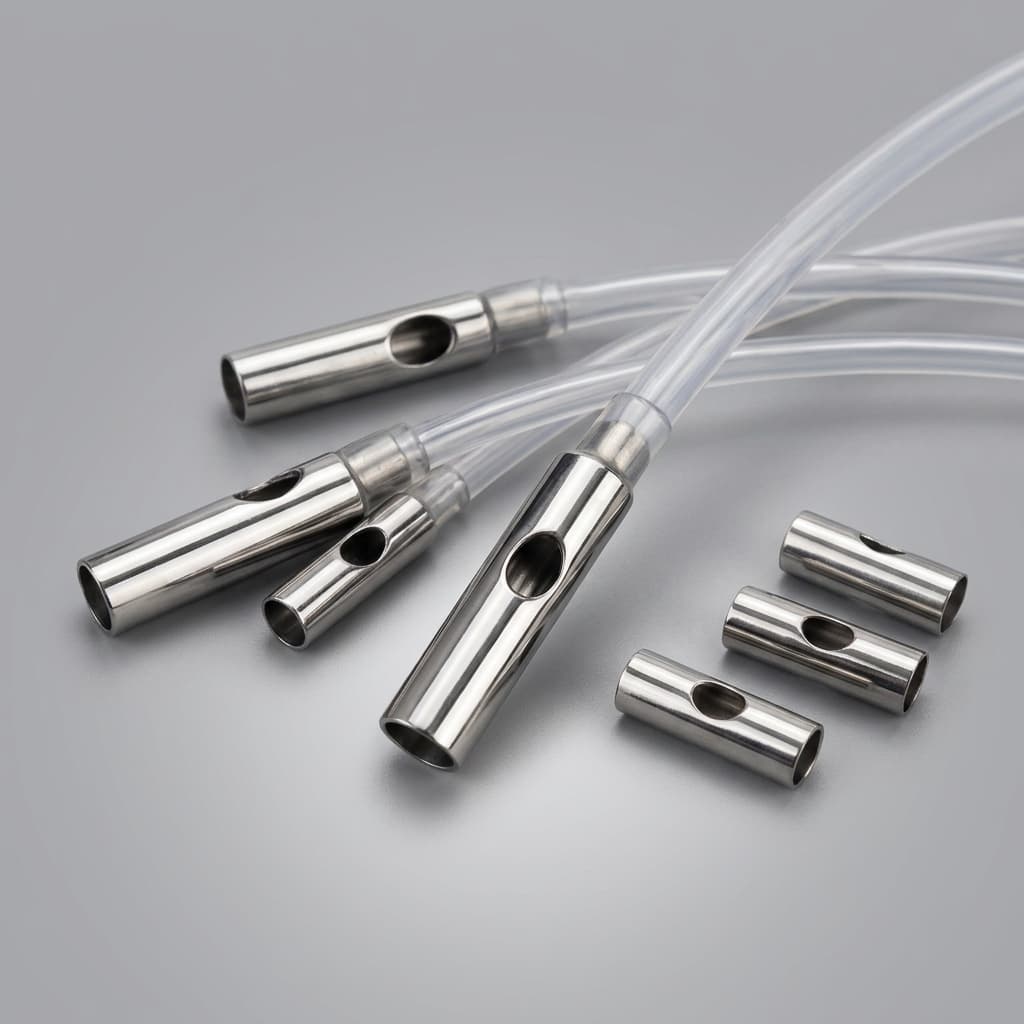

Component assembly support around reinforced catheter shafts, including marker bands, distal tips, transition sections, and prototype documentation.
Best Fit For:For buyers who want fewer handoffs between shaft reinforcement, marker placement, and distal section build-up.
Capability Highlights
- Shaft plus marker plus distal transition planning
- Prototype assembly and outgoing inspection alignment
- Supplier coordination for metal and polymer components
Typical Engagement Scope
- Distal catheter sections
- Delivery system shafts
- Prototype assemblies
Execution Focus
- Datum definition for marker and transition placement
- Assembly sequence around heat-sensitive components
- Inspection records and sample labeling
Program Evaluation Matrix
| Program Metric | Typical Range | Procurement Value |
|---|---|---|
| Assembly alignment | Datum and tolerance defined by drawing | Marker, tip, and transition alignment affects imaging, usability, and validation confidence. |
Risk and Mitigation
- Component handoff mismatch: Quote shaft, marker, and distal section interfaces together when the design allows it.
Related Products
Buyer FAQ
Can you manage multiple component suppliers?
We can coordinate component sourcing support, while final medical device design authority remains with the OEM.
Related Resources
Inquiry Email
Include OD/ID, shaft stack, prototype quantity, and delivery location.
