Reinforced catheter shaft product categories for medical OEM sourcing, from braided and coil reinforced shafts to PTFE lined reflow builds, marker band assemblies, and steerable components.

Use this page as a pre-RFQ navigator: pick the component family, capture OD/ID, reinforcement, liner, jacket, and validation inputs, then move directly to sample criteria that buyers can approve.

How to Select the Right Path

Define target OD/ID, usable length, shaft zones, and guidewire or device compatibility.
Confirm braid or coil assumptions, wire material, liner, jacket, and distal transition requirements.
Choose validation priorities: lumen pass-through, kink radius, torque response, surface quality, and marker placement.
Set sample acceptance criteria before quotation freeze.
Share prototype quantity and annual forecast in the first RFQ.

If the open question is braid, coil, or a zone-specific hybrid shaft, use the braid and coil reinforced catheter shaft CDMO tool before freezing the product family.

Braided Catheter Shaft

OEM braided catheter shaft manufacturing for torque response, kink resistance, and controlled pushability in interventional catheter programs.

Best for catheter R&D, process engineering, and sourcing teams that need a custom reinforced shaft instead of commodity tubing.

Stainless steel, nitinol, and flat wire braid reinforcement options
Pitch, pick count, braid angle, and transition-zone tuning
Multi-layer shaft stackups with PTFE liner, braid layer, and Pebax or nylon jacket

View details

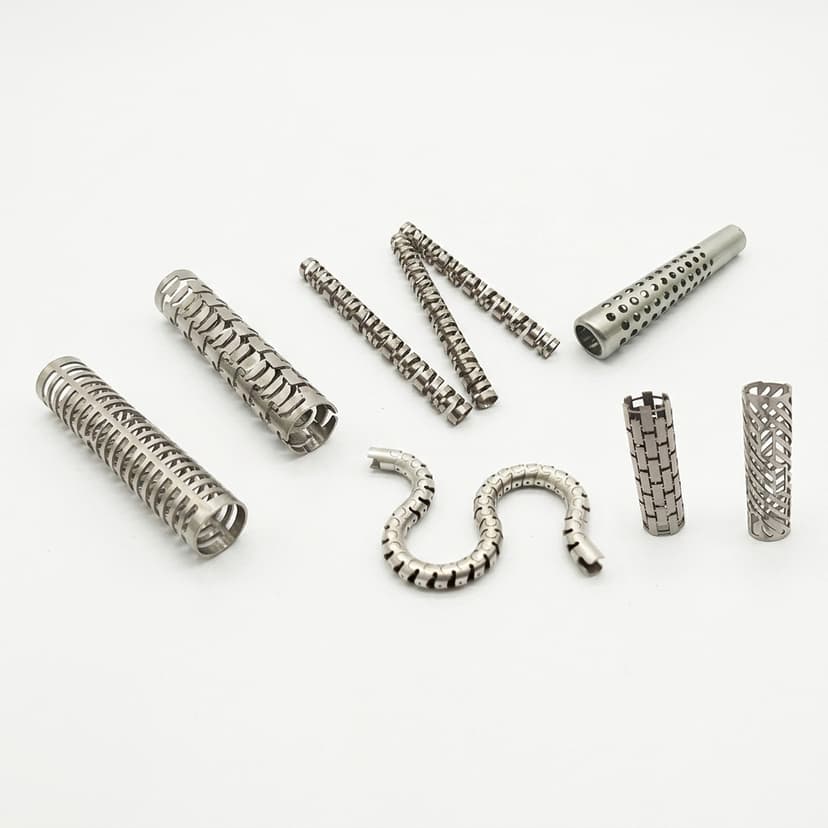

Coil Reinforced Catheter

Coil reinforced catheter shaft OEM service for flexible, kink-resistant designs where continuous support and soft distal behavior are required.

Best for device teams prioritizing smooth flexibility, lumen stability, and controlled distal support.

Round wire coil reinforcement for flexible catheter sections
Hybrid braid plus coil transition support for demanding shaft designs
PTFE liner, tie-layer, and jacket reflow integration

View details

PTFE Lined Catheter Shaft

PTFE lined catheter shaft builds with braid or coil reinforcement, jacket reflow, and lumen-focused process control for low-friction delivery systems.

Best for teams that already know lumen friction, jacket bond, and shaft stiffness targets are critical to device performance.

PTFE liner integration for guidewire and device delivery paths
Reflow processing with braid, coil, and polymer jacket layers
OD/ID concentricity and lumen integrity inspection planning

View details

High-precision radiopaque catheter marker band components

Marker Band Catheter Assembly

Catheter marker band and reinforced shaft assembly support for radiopaque positioning, distal section build-up, and OEM pilot production.

Best for OEM teams that need shaft reinforcement and marker placement treated as one controlled assembly problem.

Platinum-iridium, tantalum, gold, and stainless marker band options
Distal marker positioning support during catheter shaft build
Assembly planning for reinforced shaft plus tip and marker zones

View details

Catheter shaft manufacturing visual for OEM medical component buyers

Steerable Catheter Shaft Components

Custom reinforced catheter shaft components for steerable, deflectable, and endoscopic access devices where torque, pull-wire routing, and distal flexibility must align.

Best for advanced device teams that need reinforced catheter know-how before committing to expensive internal equipment or European CDMO capacity.

Braided or coil reinforced shaft sections for steerable devices
Multi-lumen and pull-wire routing discussion support
Distal flexibility transition planning

View details

Cross-Family Evaluation Snapshot

Product Family	Primary Buyer Focus	Key Metric	Why It Matters
Braided Catheter Shaft	Best for catheter R&D, process engineering, and sourcing teams that need a custom reinforced shaft instead of commodity tubing.	Typical shaft OD: 0.6 mm to 5.0 mm project-dependent	OD drives braid equipment setup, liner choice, reflow tooling, and downstream device compatibility.
Coil Reinforced Catheter	Best for device teams prioritizing smooth flexibility, lumen stability, and controlled distal support.	Coil pitch: Application-specific tight or open pitch	Pitch determines support, flexibility, kink behavior, and jacket flow into the reinforcement layer.
PTFE Lined Catheter Shaft	Best for teams that already know lumen friction, jacket bond, and shaft stiffness targets are critical to device performance.	Liner ID control: Defined by guidewire/device clearance	Small ID drift can cause friction, delivery failure, or unacceptable clinical device feel.
Marker Band Catheter Assembly	Best for OEM teams that need shaft reinforcement and marker placement treated as one controlled assembly problem.	Position tolerance: Project-specific datum-based tolerance	Accurate marker location supports imaging confidence and device positioning in use.
Steerable Catheter Shaft Components	Best for advanced device teams that need reinforced catheter know-how before committing to expensive internal equipment or European CDMO capacity.	Deflection zone: Defined by catheter design and bend radius	Steerable devices need flexible distal behavior without losing proximal torque control.

Featured Products

A selection of reinforced catheter shaft product families for OEM buyers.

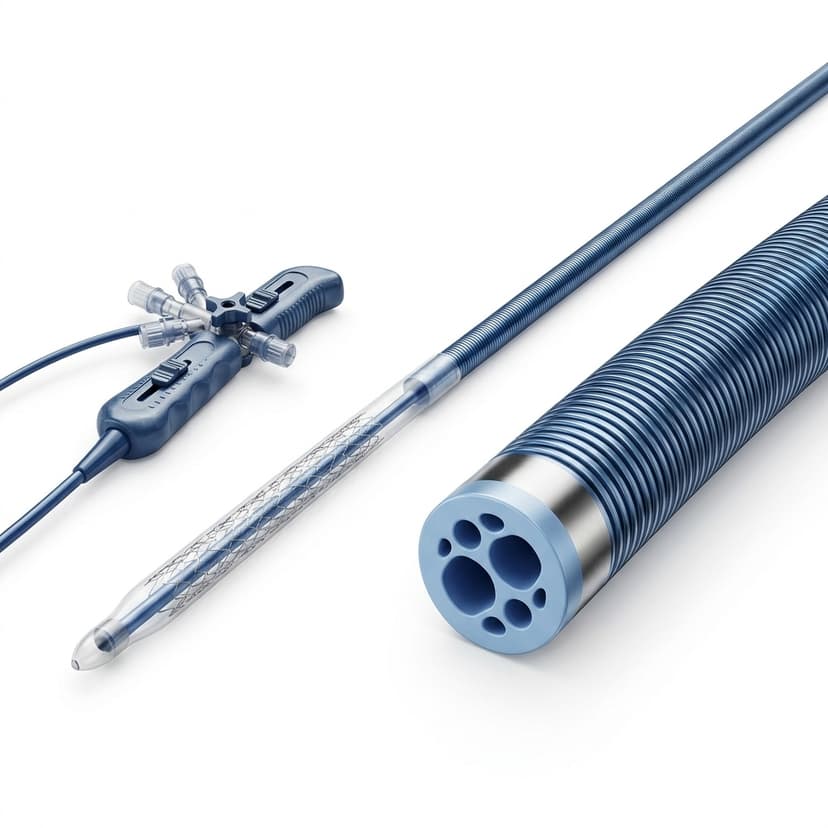

High-fidelity braided catheter shaft component with reinforced medical tube profile

Flexible bending section component for steerable catheter shaft development
